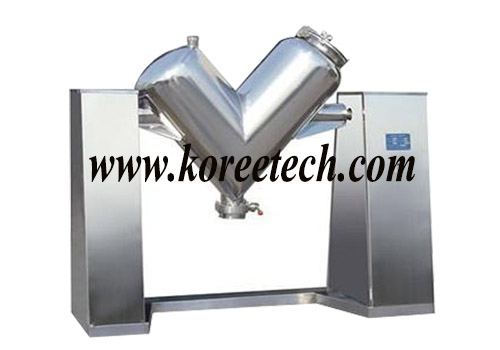

Stainless Steel V-type Mixer

Working Principle of Stainless Steel V Type Mixer

The mixer cylinder is an asymmetric V-Shape. On the top there is a quick open turn cap for feeding. And there is a turn valve on the bottom for discharge.

Feeding on the top, then turn the quick open handle. Set the mixing time on time relay, then “start”, the mixing cylinder will rotating by axes. The materials are evenly mixed in the V cylinder, and will stop mixing upon time due. Press “Start”/”On” and “Stop”/”Off”, so that the discharge valve will face downwards for discharge.

Features of Stainless Steel V Type Mixer

Unique structure of mixing tank, high mixing efficiency, free of dead corner and even mixing.  The mixer is made of stainless steel with inside and outside walls polished. The machine can also increase to mix blend the founction compulsory. It can mix thin powder and more than two form powders including the materials that contain water.

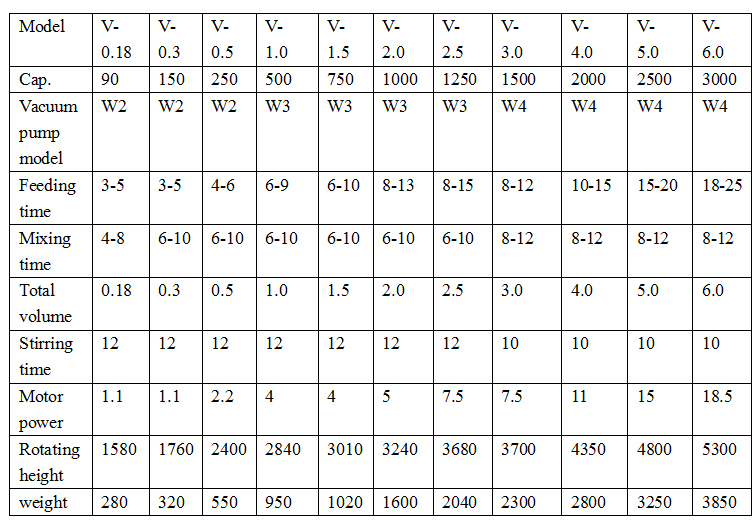

Technical parameter
