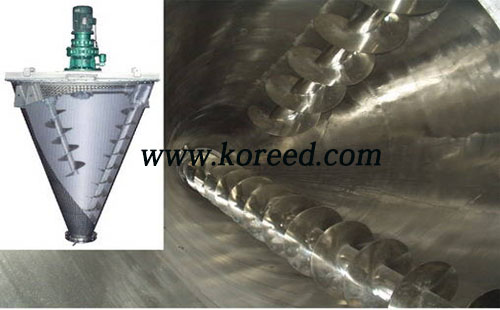

Double Auger Conical Mixer

Description

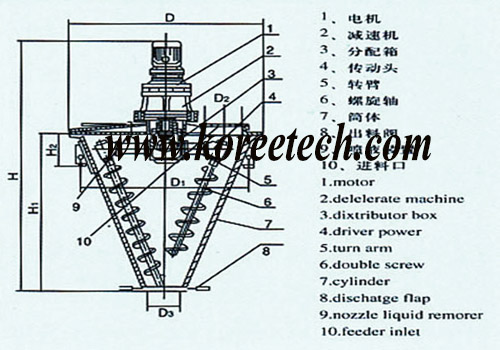

Double auger conical mixer rotates around its axes according to right of two internal asymmetric spirals, which install in the cantilever; mean while, the rotational force from the cantilever drives two spiral making revolution around conical chamber axle wire.
Double auger conical mixer come into being 4 direction forces:
1. 2 inner asymmetric spirals upgrade the materials through rotation.
2. Tumbler with low-speed rotation makes materials circulate motion.
3. Rotation and revolution of spiral make materials absorbed while diffuse to circle direction;
4. 2 flows materials upward, then go down to the center, which come into being a downward material flow; this way can full the bottom gap and form a convective circulation.

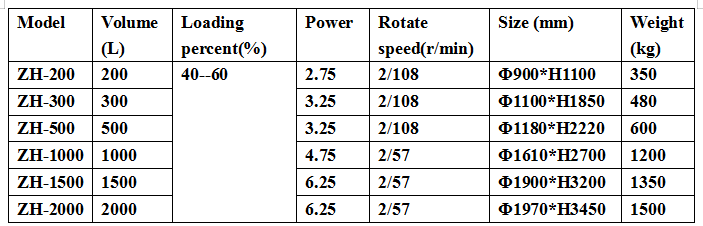

Technical parameter
