Large Angle Belt Conveyor

Description

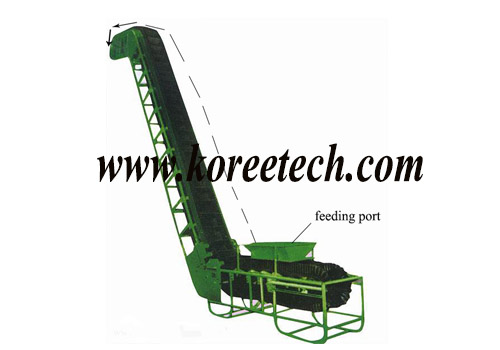

Large Angle Belt Conveyor consists of conveyor belt, roller, belt tentioning device, cleaning device and so on.
When the materials fall down on the conveyor, the roller under the belt will drive the belt forward. In this way, the material will be sent to the feeding device.

Application

Large angle belt conveyor is widely used in coal,food,building,chemical,water and electricity and metallurgy industry to transfer lump material,packaged material,iron ore,gold,coal,aggregates,sand,gravel,pulp,paper,agricultural,food processing, process plant,and allied industries.

The advantage of large angle belt conveyor

1.Large transmission angle
Large angle belt conveyor is the ideal equipment with the feature of small mounting area,especially for large angle conveying and vertical elevating,transmission angle can reach 90 degree,

2.Simple structure
The main parts of large angle belt conveyor is matched with the common belt conveyor,easy installation and maintenance.

3.Operation is reliable and stable
No bucket falling and blocking chain,the reliability of large angle belt conveyor is equal to the common belt conveyor

4.Wide range application
The large angle belt conveyor is widly used in the field of cereal,coal,building material,and metallurgy etc, it can convey the bulk material with density of 0.5-2.5 t/m³within the environment temperature of -25~40℃

At present,KOREED machine can provide the large angle belt conveyor with the belt width of B500,B650 and B800,the special belt can be used for conveying the material with high temperature and corrosive material.

Additional,customized service available.

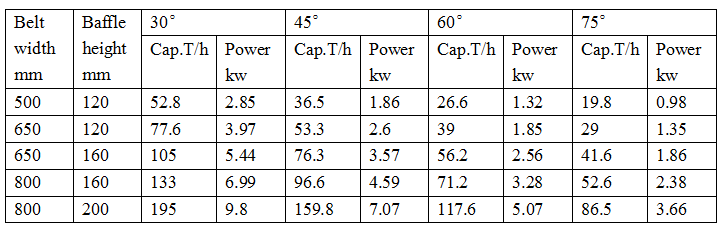

Technical parameter
