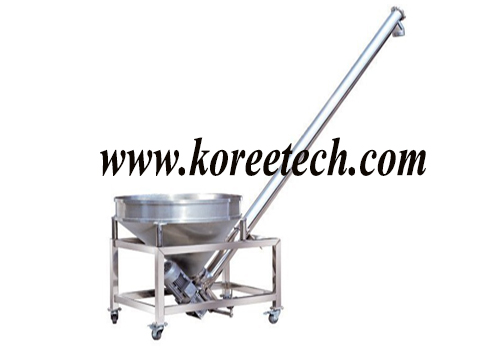

Screw conveyor

Description
Screw conveyor is used to convey and stir the materials which has the following physical forms:powder, granular or small block in the field of medicine, food and environment protection industries and can control the flow capacity of materials by adjusting rotate speed.

As an effective conveying equipment,screw conveyor can feed materials to the next working procedure evenly,and keep production running smoothly.

Operating instruction

1.Preparation before running

(1)Check that there is no foreign body in the equipment,make sure that the cover plate fastening.

(2)Make sure the oil level of reducer maintains at a stable level

(3)Ensure the tightness of foundation bolt

(4)Check that there is no foreign body at the outlet

2.Running

Screw conveyor should be no-load operation after starting,the handling material can be added when screw conveyor is running normally.Keep feeding uniformly.
Prevent iron accessories and foreign material from entering the screw conveyor during the process of operation.
Operator shall check if the oil level of reducer is normal,keep the transmission parts lubrication.Make sure anchor bolts of bearing are fastened.

3.Stop running

Make sure all of the material is discharged befor screw conveyor stops,load jobs must be banned.
Several sets of screw conveyor formed a conveyor line,stopping procedure shall be contrary to running procedure.
Press the button “emergency stop” of the control box when parking and maintenance
