Vertical Airflow Sieve

Description

As a high accurate screening equipment,vertical Airflow Sieve is mainly used for sieving the fine powder within 80~500 mesh. It is available in the industries like chemical, pharmaceutical, foodstuff, paper making and so on.

Working Principle

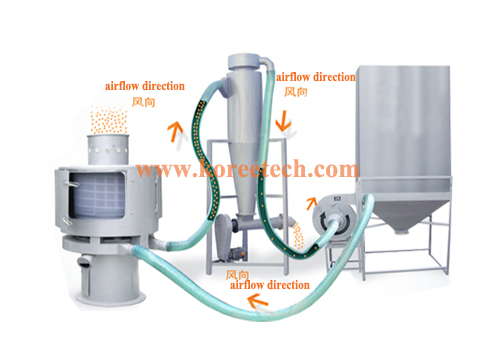

Abandoning traditional gravity potential working theory and using the theory of airflow as carrier in overall enclosed environments,the machine uses air stream as driving force at fast speed in enclosed state,making powder particles spray towards the sieving net and further realizing the purpose of fast screening.

The sieving net can be made of stainless steel,copper or nylon.The materials for sieving machine can be of carbon steel,stainless steel,and common rusty-prevented steel.
Application

Vertical airflow sieve is widely used as a tool in chemistry,paper-making,metallurgy,building materials,pharmacy,food,rubber,plastic,mining industries for sieving of powder materials,such as light calcium powder,live calcium powder,graphite powder,starch,gold powder,zinc powder,ceramics clay powder,pearl powder,fruit powder,vegetable powder,potato powder,fertilizer powder,iron powder,herbal powder,fluorescence powder,wood powder,flour etc.

Feature

1.High efficiency & Large output.

2.No blocking in the period of working.Operating constantly and low power consumption.

3.Environmental-friendly: Overall enclosed structure prevents pollution. The dust amount in working site is less than 10 mg/m3.

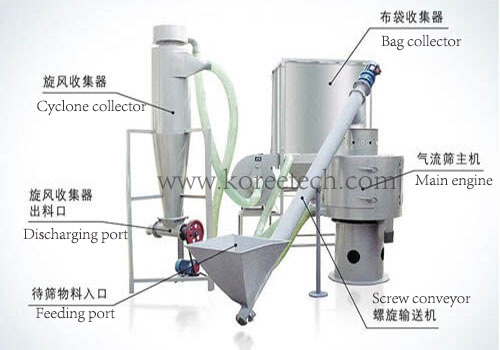

4..Structure:this kind of vertical airflow sieve is mainly made of three parts: main body, assistant body and dust bag.

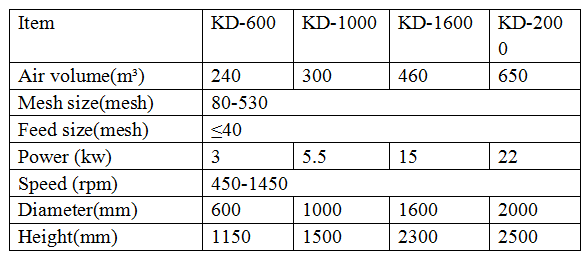

Technical parameter
