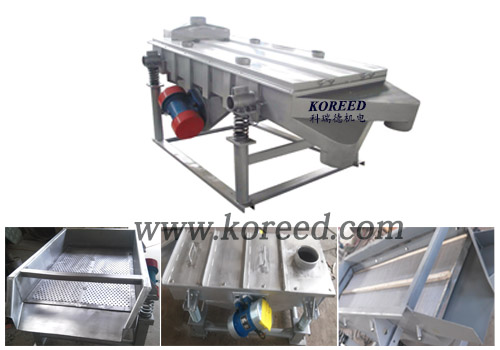

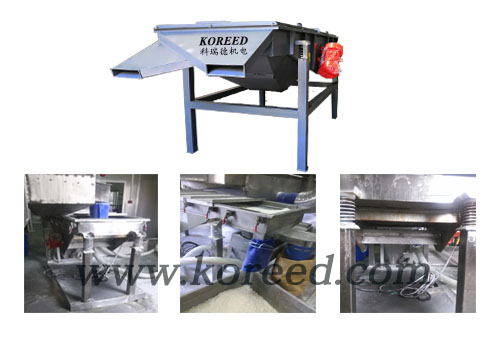

Linear vibratory screen

Linear vibratory screen use excellent vibration motor as power source, so that the materials can be thrown up on the screen and forward to make a straight movement.It can be equipped with single or multi-screen to achieve the grading, removing impurity,removing dust, testing, washing selecting,dehydration etc.

Feature
The linear vibratory screen is fully enclosed structure, no dust, auto-nesting, etc., is more suitable for pipeline operations within 24 hours;
Linear motion vibrating screen has a low energy consumption, high output, simple structure, easy maintenance;

Application
Linear vibratory sceen has a unique effect on powdery, granular materials selection and classification. Widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries.
(1)Chemical industry: fertilizers, urea, petroleum coke, resins, paints, cosmetics, paints and so on.
(2)The pharmaceutical industry: industrial chemicals, the powder particles pills, pellets, etc;
(3)Food industry: soy, chestnut, small steamed bread, spices, sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice.
(4)Metals, mining metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, powder electrodes, manganese dioxide, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, alumina, heavy carbon acid calcium, quartz sand.
(5)Other industries: plastics, abrasives, activated carbon, carbon, building materials industry.

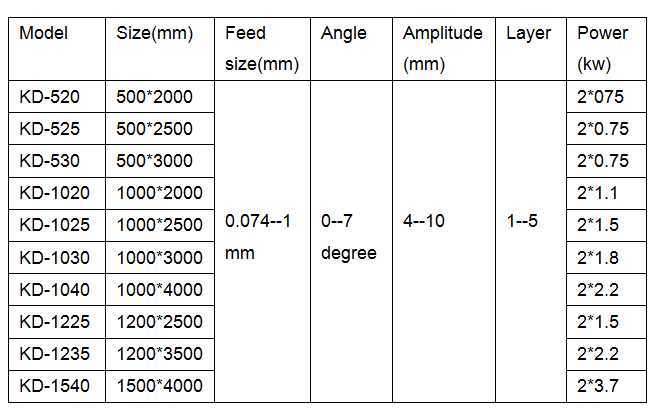

Technical parameter
