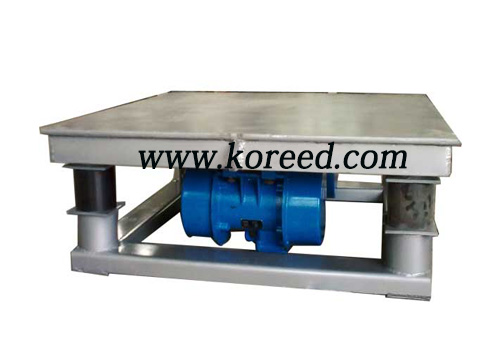

Vibrating table

Brief Introduction
Vibrating table consists of support,table-board,vibration mechanism and damping system.Vibration tables are designed to settle and compact dry bulk materials in various types of containers. Their application provides either a sizeable increase in the net weight of the container or reducing in the container size with subsequent savings in shipping and storage space.
Concrete vibrating tables are available in two types :Electromagnetic & Electromechanical. The choice of the proper type and model depends upon the application, characteristics of the material or objects being handled.
Application
Vibration table can be widly used in metallury,mould,food,Chemical and Building material etc.
Features
1 Vibration motor as vibration source, with the function of low noise, low power consumption and easy maintenance.
2. Simple structure, reliable function, light weight, small size, easy to install it .
3 .high-power, large table; maximum power of 7.5kw, exciting force of 80KN, can carry the weight of the sand box 8T.
4 .Adjustable height table, suitable for pipeline use.
5 .Install the vibration of the motor by adjusting the position of three-dimensional vibration can be achieved for complex casting cavity.
6.In styling process, without harm to the model, for best compaction results.
7. By increasing the positioning device can ensure accurate positioning in the production line
With regard to the select of vibrating table, it depends on the following factors:
(1)Application and characteristics of the handling materials.
(2)The maximum weight to be handled
(3)The type of the container
(4)Parts of vibrating screen

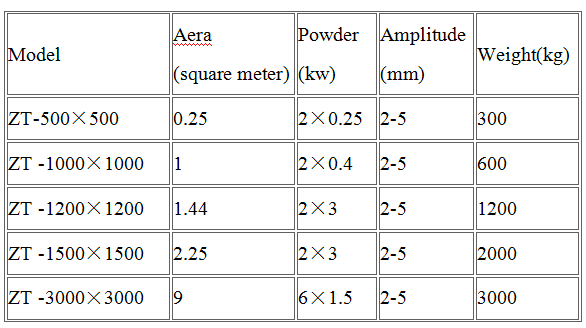

Technical parameter
